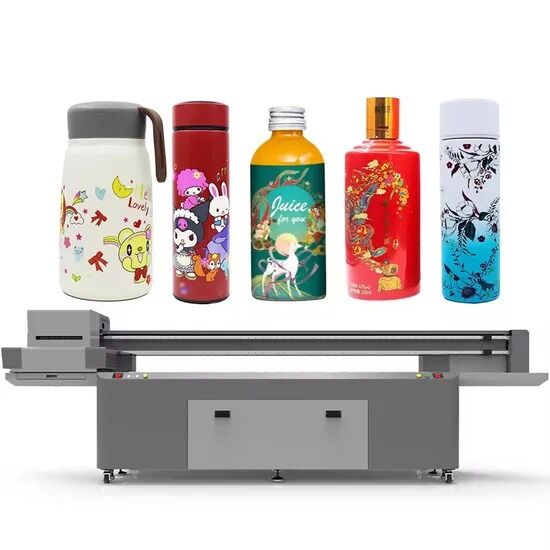

360 Degree Printing Digital Screen Cylinder UV Printer with 7.5CPI Speed and 3.5PL Ink Drop Volume

Name: 360 Degree Printing Digital Screen Cylinder UV Printer with 7.5CPI Speed and 3.5PL Ink Drop Volume
Brand: Guangzhou SkydeeKenutek Co., Ltd.
Price: 15000 USD
Availability: InStock

Product Details

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 15000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Plastic Cylinder Bottle UV Printer, Cylinder Bottle Inkjet Printer


Model NO.:	2510	Plate Type:	Porous Printing
Structure Type:	Flat-Bed Cylinder Press	Printing Interface:	USB3.0
Printing Speed:	7.5CPI	System Supported:	Windows2000
Print Size:	235cm X 63.2cm	Printing Height:	0-15cm
Equipment Size:	412cm159cm144cm	Equipment Weight:	860kg
Ink Type:	LED Environmental Protection UV Ink	Ink Color:	W+CMYK+ Varnish
Maximum Power:	3000W	Ink Drop Volume:	3.5PL
Rated Voltage:	240V 50/60HZ

Model NO.:	2510
Plate Type:	Porous Printing
Structure Type:	Flat-Bed Cylinder Press
Printing Interface:	USB3.0
Printing Speed:	7.5CPI
System Supported:	Windows2000
Print Size:	235cm X 63.2cm
Printing Height:	0-15cm
Equipment Size:	412cm159cm144cm
Equipment Weight:	860kg
Ink Type:	LED Environmental Protection UV Ink
Ink Color:	W+CMYK+ Varnish
Maximum Power:	3000W
Ink Drop Volume:	3.5PL
Rated Voltage:	240V 50/60HZ

360 Degree Printing Digital Screen Cylinder UV Printer with 7.5CPI Speed and 3.5PL Ink Drop Volume

360 Degree Printing Digital Screen Cylinder Taper Inkjet Bottle Plastic UV Printer

Product Features

High Precision: The droplet size of 3.5pl provides the best combination of throughput and print quality, suitable for various applications.
High Pixel: Different inkjet schemes can be used according to different printing materials, with accurate printing colors, distinct layers and uniform transition.
Intelligent Maintenance: When the printer is in a non-working state, the nozzle will automatically flash and keep it wet to avoid blockage caused by ink curing.

Technical Specifications

CF-2510 (Duplex)

Equipment Specifications	Details
Selection of nozzle	Ricoh GEN 5i
Print size	235cm X 63.2cm
Printing height	0-15cm (Height is customizable)
Equipment size	412cm * 159cm * 144cm
Equipment weight	860kg
Printing Software	Photoprint / PrintFactory
Ink Type	LED Environmental Protection UV Ink
Ink color	W+CMYK+ Varnish
Maximum power	3000W
Nozzle specifications	Effective orifice: 1280
Ink drop volume	3.5PL
Nozzle length	27MM
Single nozzle color	4
Rated voltage	240V 50/60HZ

Company Profile

Guangzhou Skydeekenutek Co., Ltd. is a distributor and wholesale supplier of UV printers, single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers.

Our factory is located in Panyu Guangzhou, Guangdong Province with a size of 2500 m². We employ more than 10 R&D staff and 150 workers. Our operations are ISO certified with strict quality control and production management. We support OEM and ODM services.

With over 10 years of experience manufacturing UV printers, we have received positive feedback from our clients worldwide. We export to France, Germany, Vietnam, India and other countries. Our products have CE and RoHS certification.

Packaging & Shipping

Certifications

Frequently Asked Questions

Q1: Do I need white ink and varnish ink?

A: If you choose a printer with white ink function, then the media you can print on seems to have no limitations. This is because white ink helps to generate high-quality graphics on hard or soft materials (such as acrylic boards or backlit films), and can also be used as a "primer" for printing on non-white materials. Varnish can make the printed pictures brighter, and at the same time extend the fading period of UV ink.

Q2: What materials can UV flatbed printers print on?

A: All flatbed media, such as PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, etc. UV printing reduces many tasks and troubles such as coating, fading, and blistering, and saves a lot of working hours. Rigid identification boards, hard cardboard or corrugated boxes, special markets (such as custom and decoration markets): glass, tiles, wood, even furniture.

Q3: Which languages does the RIP installation interface support?

A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, Traditional Chinese.

Q4: How is the after-sales service?

A: We have many experienced technicians who provide technical support for all customers. We will teach you how to operate the machine until you fully master it. Sometimes our technical team will also go abroad to test and repair the machine.

Q5: Regarding printer maintenance

A: We suggest pressing the ink once a day when the printer is turned on. If you don't use the printer for more than 10 days, please clean the print head with cleaning fluid and keep the nozzle moisturized.

Q6: Are you a factory or a foreign trade company?

A: We are a factory, so we can provide printers at reasonable prices and high-quality services.
